उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| कैबिनेट का आकार: | 1200 मिमी × 600 मिमी × 600 मिमी (एच × डब्ल्यू × डी) | संरचना: | एकल परत |
|---|---|---|---|
| आंतरिक रिक्त स्थान: | 1*19-इंच रेल, 20यू माउंटिंग स्पेस | सामग्री: | 1.2 मिमी गैल्वनाइज्ड स्टील प्लेट |
| केबल अंदर/बाहर: | नीचे से | ताला: | तीन-बिंदु लॉकिंग सिस्टम |
| सुरक्षा स्तर: | आईपी55 | रखरखाव: | सामने का रखरखाव |
| प्रमुखता देना: | 20U outdoor telecom cabinet,IP55 network equipment enclosure,500W air-conditioned telecom cabinet |
||

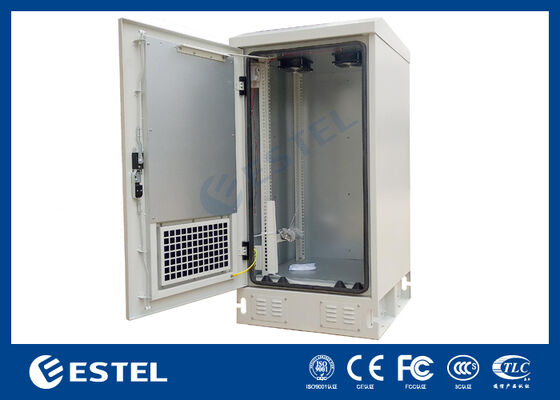

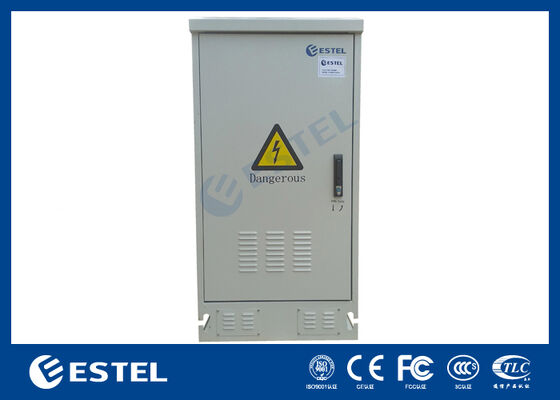

Compact 20U IP55 Outdoor Cabinet with 500w Air Conditioner for Network Equipment
Designed specifically for space-constrained outdoor deployments, this 20U compact cabinet delivers an optimal balance of robust protection, efficient thermal management, and intelligent onboard features. Rated IP55, it offers reliable defense against dust ingress and low-pressure water jets, making it well-suited for a wide range of applications — including edge computing nodes, small-cell 5G infrastructure, roadside units (RSUs), industrial control systems, and smart city deployments — where full IP65 sealing may not be strictly required, but cost efficiency and ease of deployment are top priorities.
The cabinet's construction and thermal design work together to ensure stable operation in outdoor environments. When additional cooling is needed, an optional 500W air conditioner can be integrated. This compact cooling unit operates on 220VAC 50Hz and is equipped with an RS485 communication interface, enabling remote monitoring of system status, temperature regulation, and alarm reporting directly from a network operations center (NOC) or centralized management platform.
With its compact footprint (H1200mm × W600mm × D600mm), flexible installation options (floor or roof mounted), and bottom cable entry/exit, this cabinet is engineered for quick deployment in tight spaces — from roadside poles and rooftop sites to remote industrial yards. The result is a smart, secure, and cost-optimized enclosure that brings enterprise-grade features to distributed outdoor networks without unnecessary bulk or expense.
| Parameter | Specification |
| External Dimensions | 1200mm × 600mm × 600mm(H×W×D) |

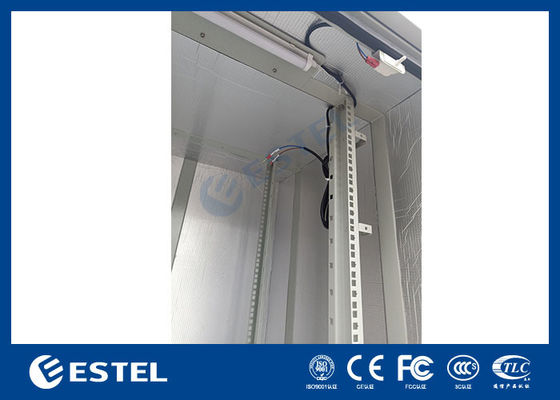

| Internal Space | 1*19-inch rail, 20U mounting space |
| IP Grade | IP55 |
| Parameter | Specification |
| Structure | Single wall |
| Material | Galvanized steel, 1.2mm |
| Load-Bearing Part | 2.0mm galvanized steel |
| Thermal Insulation | 20mm thermal insulation cotton |
| Coating | Polyester powder coating |
| Color | RAL7035 |
| Feature | Specification |
| Locking System | Three-point locking |
| Hinge | Inner hinge (concealed) |
| Installation | Floor installation/ roof mounted |
| Cable in/out | From the Bottom |
| Maintenance | Front maintenance |
| Type | AC air conditioner |
| Cooling Capacity | 500W |
| Input Voltage | 220VAC, 50Hz |
| Communication | RS485 |
| Internal Lighting | 220VAC LED lamp |
| Socket | Optional |
| Power Distribution Board | Optional |
