उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| आकार: | 1यू | शक्ति: | अधिकतम. 3.48 किलोवाट |
|---|---|---|---|
| एसी इनपुट: | जी एस | डीसी आउटपुट: | 3-तरफ़ा |
| बैटरी: | 1-रास्ता | दिष्टकारी दक्षता: | >94% |
| वज़न: | लगभग 10 किग्रा | शीतलक: | बिल्ट-इन फोर्स्ड फैन कूलिंग |
| प्रमुखता देना: | 1U telecom rectifier power supply,3kW telecom power system,telecom rectifier with controller |
||

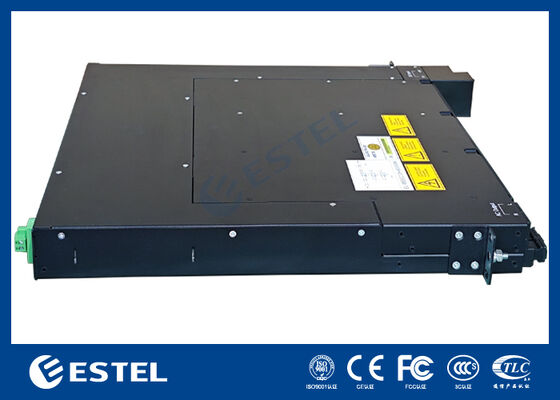

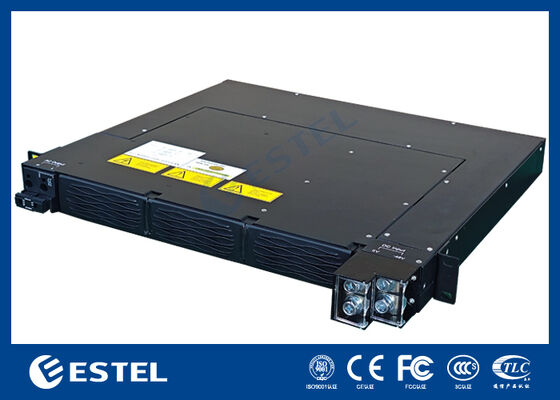

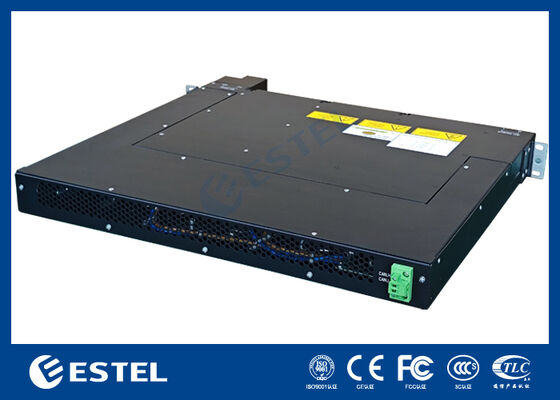

1U Size 3kW Telecom Rectifier Power With Controller and User Interface Board
1. Introduction of ESTEL 1U 3kW Telecom Rectifier Power
This product is a compact size 1U sub-rack power supply, specially designed for critical power supply for communication applications which need reliable high-quality -48VDC supply, while only have limited space.
2. Applications of ESTEL 1U 3kW Telecom Rectifier Power
Wireless base station
Transmission network
Communication network of enterprises
| Item | Parameter |
| Dimension | 482.6mm(W)×328.5mm(D)×44mm(1U/H) |
| Total Weight | About 10kg |
| Cooling | Forced fan cooling |
| Installation | 19’’ rack |
| AC Input Power | 220VAC single phase |
| AC Input Frequency | 45~66Hz, rated value: 50Hz/60Hz |
| AC Input Connection | Terminals |
| DC Output Voltage | -42~-58VDC, rated value: -53.5VDC |
| DC Output Power | Maximum 3.48kW (1.74kW×2) |
| Battery Connection | 1-way terminal |
| DC Load Connection | 3-way terminal |
| Rectifier Module | 2pcs modules of 1740W |
| Controller | With, support LAN, SNMP, RS485, LCD |
| User Interface Board | With. Support AI, DI, dry contact outputs |
| Remote Monitoring | Support |
5. Advantages of ESTEL 1U 3kW Telecom Rectifier Power
