| अवलोकन: | H750mm×W750mm×D2000mm | प्रकार: | दूरसंचार बिजली कैबिनेट |
|---|---|---|---|
| गारंटी: | 12 महीना | सामग्री: | कलई चढ़ा इस्पात |
| इन्सुलेशन: | गर्मी इन्सुलेशन के साथ | आंतरिक स्थान: | 19 इंच, 38U |
| दरवाजा: | एक सामने के दरवाजे के साथ | स्थापना विकल्प: | फर्श पर चढ़ा हुआ |
| आईपी स्तर: | आईपी65 | शीतलन प्रणाली: | एयर कंडीशनर/हीट एक्सचेंजर/आपातकालीन पंखे |
| प्रमुखता देना: | Outdoor Telecom Power System IP65,12kW Telecom Power Enclosure,200A Rectifiers Outdoor Power System |
||

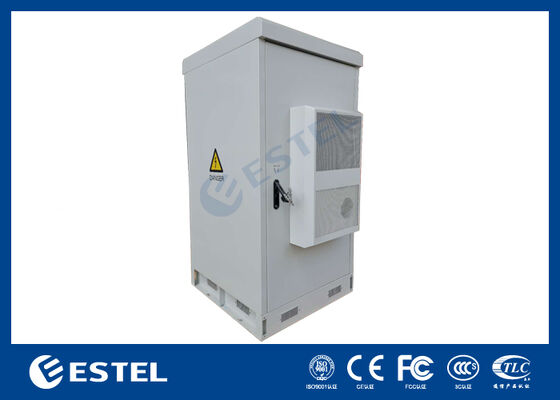

Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 12kW 200A Rectifiers
1. Introduction of Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 12kW 200A Rectifiers
ET7575200A-38U-12kW/200A is an outdoor cabinet which can provide stable power supply for telecom equipment while protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment which need DC power supply.

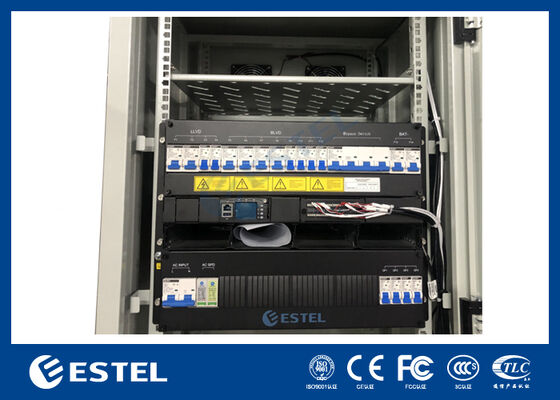

2. Parameters of 12kW Rectifier Power System
Telecom power systems are customized products, the rectifier capacity, solar power capacity, input breakers, LLVD & BLVD breakers, and breaker brands all are based on customer's requirements.
The power system for this power cabinet is a 12kW 200A pure rectifier power system. And its parameters are listed in below table.
| Item | Parameter | |
| Physical |
Size |
W × D × H = 482.6mm × 350.6mm × 8U (H) |
|
Weight |
≤ 42kg (Without modules) |
|
|
Installation |
19’’ standard rack mountable |
|
|
Cable Routing |
Bottom in and top out |
|
|
Maintenance |
Front maintenance, hot-swappable |
|
|
IP Grade |
IP20 | |
| AC Power Distribution |
Input |
1-Phase, 220VAC |
|
Input MCB |
2× 125A/3P |
|
|
Frequency |
45-65Hz, Rated value: 50Hz/60Hz |
|
|
AC SPD |
20kA/40kA, 8/20μs |
|
|
AC Output |
/ | |
|
DC Power Distribution |
Output |
-43VDC to -58VDC, Rated output: -53.5VDC |
| Max. Capacity | 12kW Rectifier System (4× 3kW); | |
|
Battery MCBs |
2× 125A/1P |
|
| Load MCBs |
LLVD: 2× 125A/1P, 2× 63A/1P |
|
|
BLVD: 4× 125A/1P, 4× 63A/1P |
||
|
DC SPD |
10kA/20kA, 8/20μs |
|
|
Rectifier Module |
Input Voltage |
85VAC - 300VAC, Rated value: 220VAC |
|
Efficiency |
≥ 96% |
|
|
Rated Output Power |
3000W |
|
|
Working Temperature |
-40℃ to +75℃ (50℃ @full load output) |
|
|
Size |
W × D × H = 106.5mm × 286mm × 41.5mm (1U) |
|
|
Weight |
≤ 2.1kg |
|
|
Cooling |
Forced air cooling |
|
|
Power Factor |
≥ 0.99 @220VAC, 20% - 100% load |
|
|
Power Monitoring |
Signal Input |
4-way AI (3 battery temperature sensors, 1 ambient temperature sensor); 8-way DI; |
|
Alarm Output |
8-way DO |
|
|
Communication Ports |
LAN, USB, RS485, SNMP |
|
|
Display Mode |
LCD | |

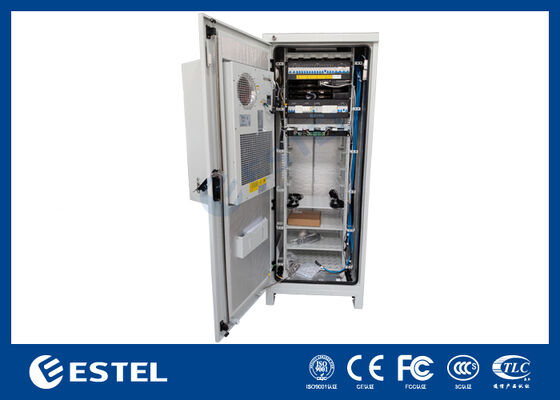

3. Parameters of 38U IP65 Outdoor Power Enclosure
1) Cabinet features:
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET7575200A-38U |
| Protection Level | IP55 | |
| External Dimension | H750mm×W750mm×D2000mm (Can be customized) | |
| Internal Dimension | 19 inch rail, 35U | |
| Material | Galvanized steel,inner plate:1.0mm, outer plate: 1.2mm, base thickness: 2.0mm, double wall | |
| Insulation | PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted with installation accessories | |
| Cable routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door | |
| Cooling | Cooling capacity | 1500W |
| Power supply | 48VDC | |
| PDU | Power distribution unit | 125A 6 way UK plug |
| sensors | Door sensor, water sensor, temperature and humidity sensor, smoke sensor | |
| Others | Illumination | LED lamp: 48VDC with switch |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
2) Protection features:
4. Applications of Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 12kW 200A Rectifiers
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
